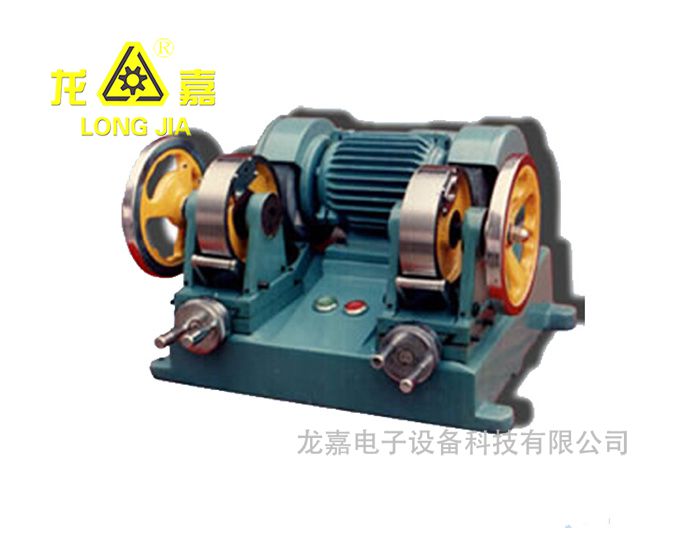

Double-End Grinding Machine

The double-end grinding machine is a device that grinds the rubber test piece to a certain thickness and enables it to have a uniform thickness and a smooth surface.

Main technical parameters

1. Linear velocity of grinding wheel: 24m/s

2. Specifications of grinding wheel:

     G260APRI 170×40×32 36 grains    G260APRI 170×40×32 80 grains

3. Design dimensions: Diameter: 160×44(mm), height of center: 214mm

4. Active wheel stroke : 20mm

5. Test piece dimensions: Length: >260mm; width: ≤36mm; height: ≤8mm
